Product Data EAN/UPC - Case 8719514524040 Numerator - Quantity Per Pack 1 Order product name BY021P G2 LED205S/840 PSU WB GR Full product name BY021P G2 LED205S/840 PSU WB GR EAN/UPC - Product 8719514524040
Full product code 871951452404000 Order code 911401642307 Numerator - Packs per outer box 1 Material number (12NC) 911401642307
| EAN/UPC - Case | 8719514524040 |
| Numerator - Quantity Per Pack | 1 |
| Order product name | BY021P G2 LED205S/840 PSU WB GR |
| Full product name | BY021P G2 LED205S/840 PSU WB GR |
| EAN/UPC - Product | 8719514524040 |
| Full product code | 871951452404000 |
| Order code | 911401642307 |
| Numerator - Packs per outer box | 1 |
| Material number (12NC) | 911401642307 |
Specifications
- Operating and Electrical
Inrush current 54 ALine Frequency 50 or 60 HzInput Voltage 220 to 240 VInitial CLO power consumption - WNumber of products on MCB of 16 A type B 6Inrush time 0.75 msPower Consumption 168 WPower Factor (Fraction) 0.9Connection Connection unit 3-poleCable Cable 0.3 m with connector 3-poleInput Frequency 50 or 60 Hz
Installation diagrams
Power supply unit - Beam angle 90° - 90°
| EU RoHS compliant | Yes |
| Photobiological risk | Photobiological risk group 1 @200mm to EN62778 |
| Flammability mark | - |
| Protection class IEC | Safety class I |
| Ingress protection code | IP65 [Dust penetration-protected, jet-proof] |
| Warranty period | 3 years |
| Mech. impact protection code | IK06 [1 J] |
| CE mark | Yes |
| ENEC mark | - |
| Sustainability rating | - |
| Glow-wire test | Temperature 650 °C, duration 30 s |
| Luminous Flux | 20,500 lumen |
| Correlated Color Temperature (Nom) | 4000 K |
| Optic type | Wide beam |
| Luminaire light beam spread | 90° |
| Unified glare rating CEN | Not applicable |
| Color rendering index (CRI) | >80 |
| Luminous Efficacy (rated) (Nom) | 122 lm/W |
| Light source color | 840 neutral white |

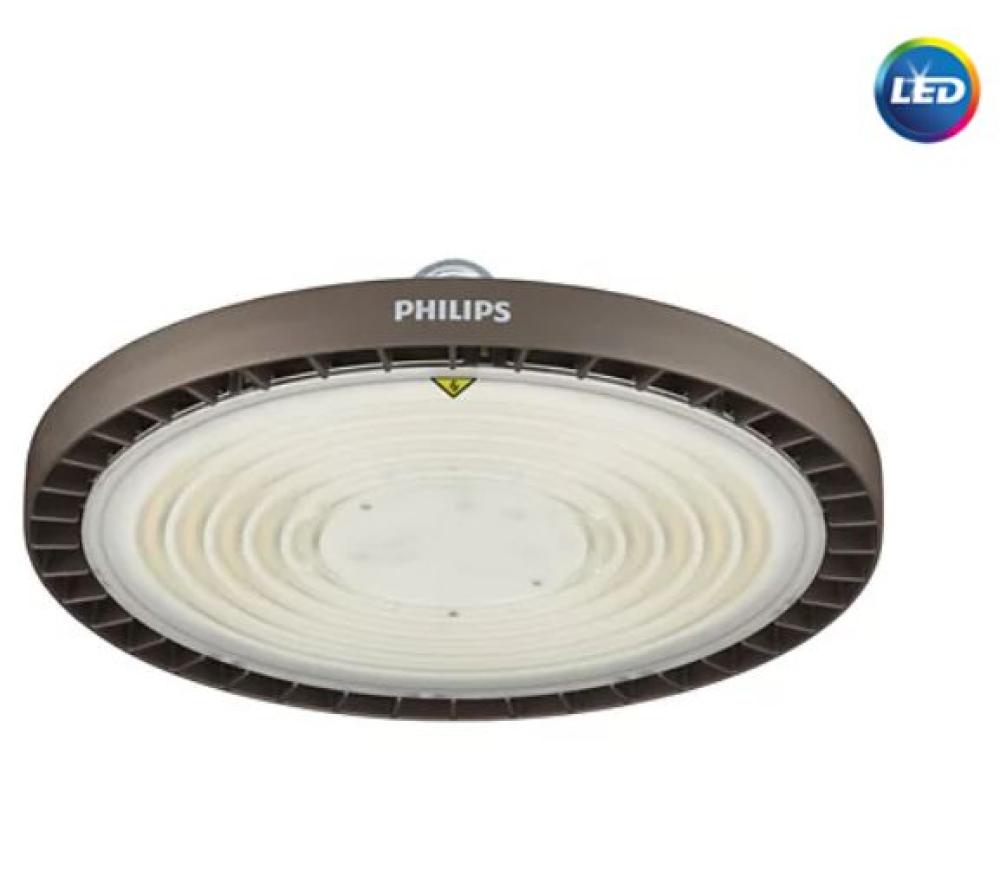

Philips BY021P G2 LED205S/840 PSU WB GR Highbay
Philips BY021P G2 LED205S/840 Philips BY021P G2 LED205S/840
QAR 1.00
